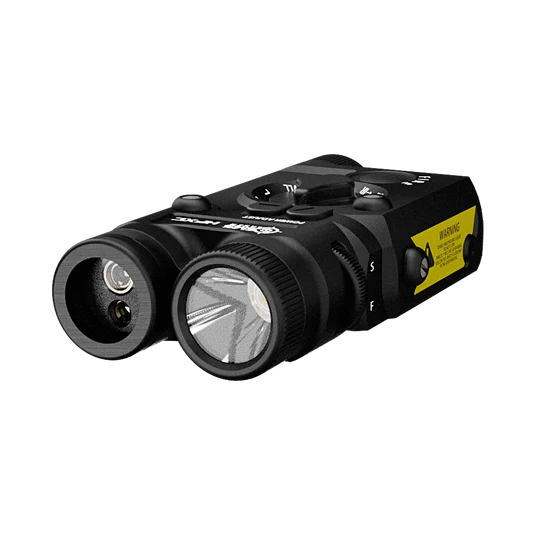

SMS Laser HFXC V2

Key Features

• Combines white light, vis laser, IR laser, and IR illuminator in one unit
• The IR laser and vis lasers are in a slave and do not need to be zeroed separately.
• IR Illuminator variable beam divergence: ~17 MRAD to ~120 MRAD
• Adjustable power (important: low power IR laser high power IR illuminator, reduces halo from IR laser)
• Aluminum housing with hard oxidized finish

Optical Specifications

• Visible laser power: <5mW
• Visible laser wavelength: 520nm
• IR laser power: 0.7mW
• IR laser wavelength: 850nm
• IR Illuminator Power: 0.7mW
• IR Illuminator wavelength: 850nm
• White light lumens: 1k
• White light candela: 50k

Physical Specifications

• Dimension (in): 4(L)*2.16(W)*1.18(H)
• Weight (oz): 8.4

Mechanical Specifications

• Housing Material:Aluminum
• Surface Finish: hard oxidation
• Adjustment per Click: 1MOA

Environmental Specifications

• Submersion: IPX3 (Cannot be immersed in water)
• Vibration: 1000G
